Scotchman Auto Feed System (AFS)

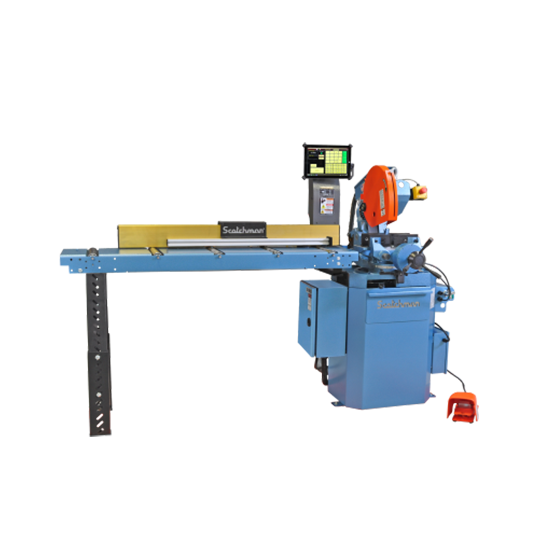

The Scotchman Auto Feed System (AFS) turns a Scotchman semi-automatic cold saw into a fully automatic cutting system. It pushes material to length, clamps it, cycles the saw and indexes to the next cut from a programmed cut list. It pairs with the CPO 350 PKPD and SUP series saws. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

  • Automatic sequence: pushes stock to cut length allowing for blade kerf, clamps the material, triggers the cut, releases the clamp and indexes to the next cut.
  • Cut lists: unlimited storage for cut jobs, with an optimizing auto list mode; download cut lists over built-in wireless networking or a USB drive.
  • Manual cuts too: switch between stop mode and pusher mode, position the stop and fire the saw yourself; miter cuts run in semi-automatic mode.
  • Touchscreen: a 17 in Windows touchscreen that works in inches, fractions, decimals or metric, with barcode support.
  • Carriage: rides on a linear bearing system, with a planetary gear head for near-zero backlash.
  • Made in the USA: mounts left to right or right to left, with a one-year warranty on the feed system.

Specifications at a Glance

  • Lengths: 8 ft to 30 ft working lengths
  • Pairs with: Scotchman CPO 350 PKPD and SUP series saws
  • Screen: 17 in Windows touchscreen; multi-lingual
  • Modes: auto pusher, batch, incremental, set point and auto list (optimizing)
  • Power: 120 VAC

Who It’s For

Shops running a Scotchman semi-automatic cold saw that want it to cut whole cut lists without an operator measuring and loading each piece.

Sales & Service from Icon

Icon Machine Tool sells Scotchman machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
