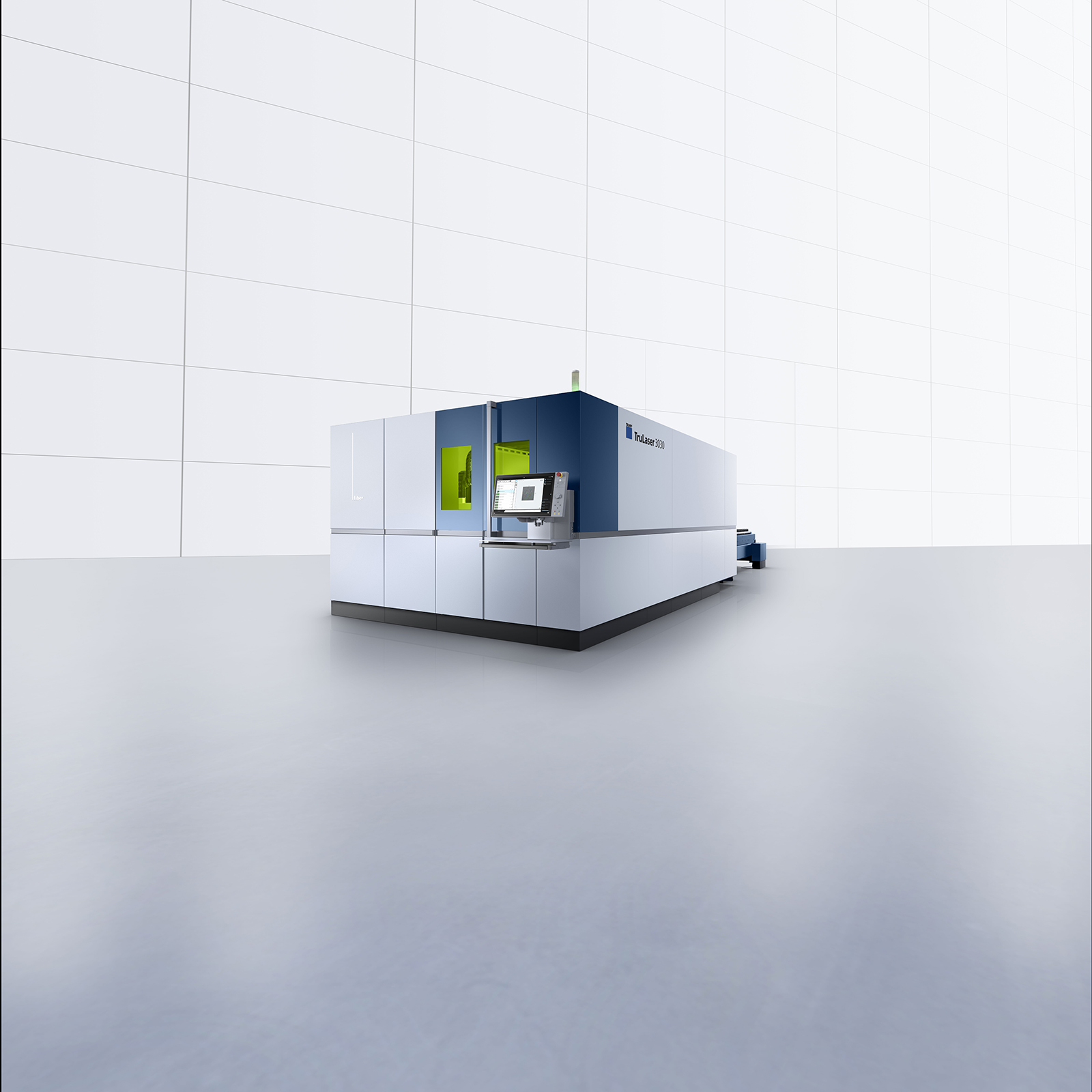

Description
Key Features
- TruFiber lasers, 4 to 24 kW: the 24 kW TruFiber 24001 processes parts up to three times as fast, with the biggest gains in medium and thick sheet.
- Highspeed Eco: cuts nitrogen consumption by up to 60% and nearly doubles sheet throughput on medium and thick mild steel and stainless.
- BrightLine fiber and CoolLine: clean edges across the full thickness range, and small contours in thick mild steel without burning out.
- Smart collision prevention and Smart Rerun: fewer microjoints to clean up, and the machine resumes on its own after a minor collision.
- Condition Guide: monitors the machine’s condition so problems are caught before they cause downtime.
- RotoLas option: cut tubes and profiles up to 14.6 in (370 mm) outer circle on the same flatbed machine.
- Automation-ready: scale from LoadMaster loading up to LiftMaster load/unload and sorting with a TruStore storage connection.
Specifications at a Glance
- Working range: 3030 – 118 × 59 in (3000 × 1500 mm); 3040 – 157 × 79 in (4000 × 2000 mm); 3060 – 236 × 98 in (6000 × 2500 mm); 3080 – 315 × 98 in (8000 × 2500 mm)
- Laser power: TruFiber 4, 6, 9, 12 or 24 kW
- Max thickness (24 kW with thick-sheet package): mild steel 2.36 in (60 mm), stainless 2.36 in (60 mm), aluminum 1.57 in (40 mm), copper 0.63 in (16 mm), brass 0.5 in (12.7 mm)
- Max simultaneous speed: 558 ft/min (170 m/min)
- Max workpiece weight: up to 10,384 lb (4,710 kg) on the 3080 without heavy-duty pallet changer; 17,306 lb (7,850 kg) with it
Who It’s For
A strong fit for job shops and manufacturers with a varied part mix, regular thick-plate work, or plans to automate, who need more power and options than an entry-level laser.
