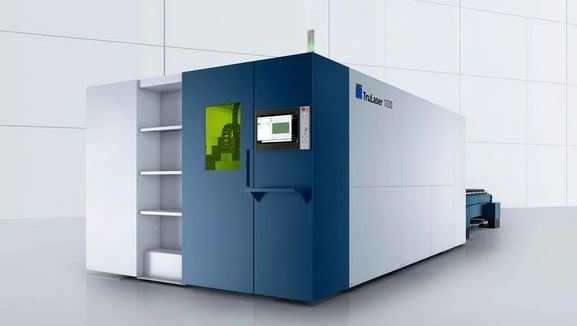

Description
Key Features
- TruFiber lasers, 4 to 12 kW: cut a wide range of thicknesses productively, including non-ferrous metals with nitrogen.
- Highspeed Eco: raises feed rates by up to 70% and cuts nitrogen consumption by an average of 60%.
- BrightLine fiber and PierceLine: clean edges across thicknesses and up to 80% shorter piercing times.
- Drop&Cut: place new parts on remainder sheets without realigning the sheet.
- Collision protection: protects the cutting head if a part tips up, keeping the machine running.
- Integrated cutting data and touchscreen: operators get productive with minimal training.
- Automation-ready: add loading and unloading systems as your volume grows.
Specifications at a Glance
- Working range: 1030 – 118 × 59 in (3000 × 1500 mm); 1040 – 157 × 79 in (4000 × 2000 mm); 1060 – 236 × 98 in (6000 × 2500 mm)
- Laser power: TruFiber 4, 6, 9 or 12 kW
- Max thickness (12 kW with thick-sheet package): mild steel 1.57 in (40 mm), stainless 1.97 in (50 mm), aluminum 1.18 in (30 mm), copper and brass 0.5 in (12.7 mm)
- Max simultaneous speed: 459 ft/min (140 m/min)
- Max workpiece weight: up to 6,390 lb (2,900 kg) on the 1060, without heavy-duty pallet changer
Who It’s For
A strong fit for growing job shops and mid-volume manufacturers that need reliable cut quality and room to add automation later.
Sales & Service from Icon
Icon Machine Tool is the TRUMPF sales partner for Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
Full Specifications (PDF) Talk to a Specialist: (816) 300-0019
