HE&M H130-DC Series

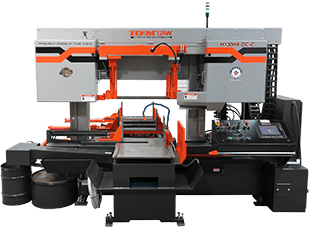

The HE&M H130-DC Series is a dual column band saw with a 10 hp motor and a 1.5 in blade that cuts up to 20 x 20 in. It comes as the semi-automatic H130M-DC or the automatic H130A-DC, which stores jobs and feeds material on a 48 in servo bar-feed. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Automatic version: the H130A-DC programs and stores jobs for later use, with a 48 in multiple-index servo twin ball-screw bar-feed; a 120 in feed with a third vise is optional.
  • Cut Watcher and chip auger: standard on the H130A-DC; Cut Watcher monitors the straightness of the cut.
  • Full-stroking vise: variable pressure, with a powered guide arm.
  • Touchscreen control: a 7 in swing-away touchscreen on the H130M-DC; HE&M’s Smart Saw console with a 9 in touchscreen and MTConnect data output on the H130A-DC.
  • Cutting control: adjustable clamping force, variable blade speed with a touchscreen readout, adjustable feed rate and cutting pressure, powered blade tension, carbide blade guides and lead-in/lead-out roller guides.
  • Coolant and blade brush: flood coolant with a wash-down hose and a blade brush are standard.

Specifications at a Glance

  • Capacity: 20 x 20 in rectangular; 20 in round
  • Blade: 19 ft x 1.5 in x 0.050 in
  • Motors: 10 hp blade; 2 hp hydraulic
  • Bar-feed (H130A-DC): 0 to 48 in servo twin ball-screw, multiple index

Who It’s For

Shops cutting solid bar, tube and shapes up to 20 x 20 in, from single cuts to automatic runs.

Sales & Service from Icon

Icon Machine Tool sells HE&M machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Talk to a Specialist: (816) 300-0019
