Cosen VCS Series

The Cosen VCS Series are vertical contour band saws for tool rooms and plate work. Four models cover 8.6 to 13 in cutting height and 11.96 to 36 in throat, with inverter-controlled blade speed up to 1,750 ft/min. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

  • Variable blade speed: an inverter drive on every model, from 98 to 1,279 ft/min on the VCS-310 up to 100 to 1,750 ft/min on the VCS-1000.
  • Tilting table: the VCS-310 and VCS-600 tables tilt ±15°; the VCS-1000 table tilts 15° left or right and ±10° fore and aft, with a stationary second table.
  • Hydraulic traversing table: the VCS-600H table moves 13 in under hydraulic power.
  • Carbide blade guides: tungsten carbide guides and bearings, with manual blade tensioning.
  • Ready to work: two T-slots in the table, a rip fence and a built-in work light.
  • Blade lubrication: a band mist lubricator on the VCS-310, 600 and 600H; the VCS-1000 uses a chip blower instead of coolant.

Specifications at a Glance

  • VCS-310: 8.6 in height, 11.96 in throat, 1 hp, 441 lb
  • VCS-600: 12 in height, 23.5 in throat, 3 hp, 1,342 lb

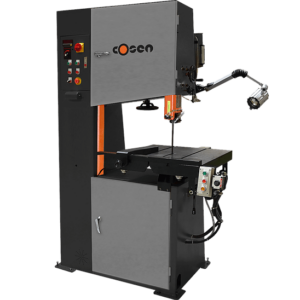

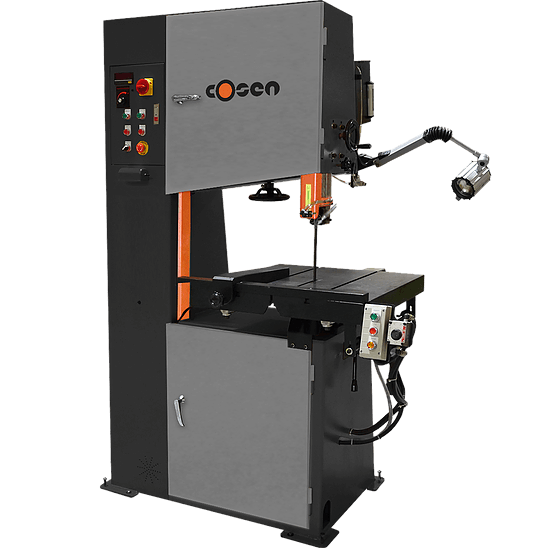

  • VCS-600H: 12 in height, 23.5 in throat, 13 in hydraulic table travel, 3 hp, 1,542 lb

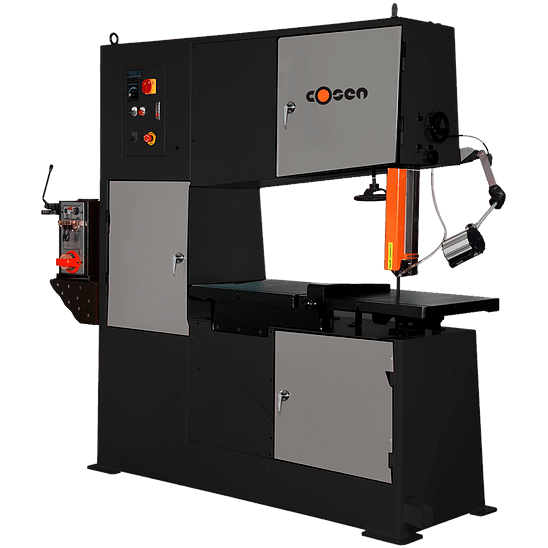

  • VCS-1000: 13 in height, 36 in throat, 3 hp, 1,764 lb
  • Table size: 19.7 x 19.7 in (VCS-310), 26.75 x 29.5 in (VCS-600 and 600H), 19.8 x 40 in (VCS-1000)

Who It’s For

Tool rooms, die shops and fabrication shops cutting contours and shapes in plate and other material.
