Description
Key Features
- LoadMaster Bend: loads blanks while the cell keeps bending, and its sheet sensor measures each blank optically for a precise handoff to the BendMaster.
- ToolMaster Bend: sets up the right tools automatically. Each tool carries an ID chip, so the system knows its position, type and orientation.

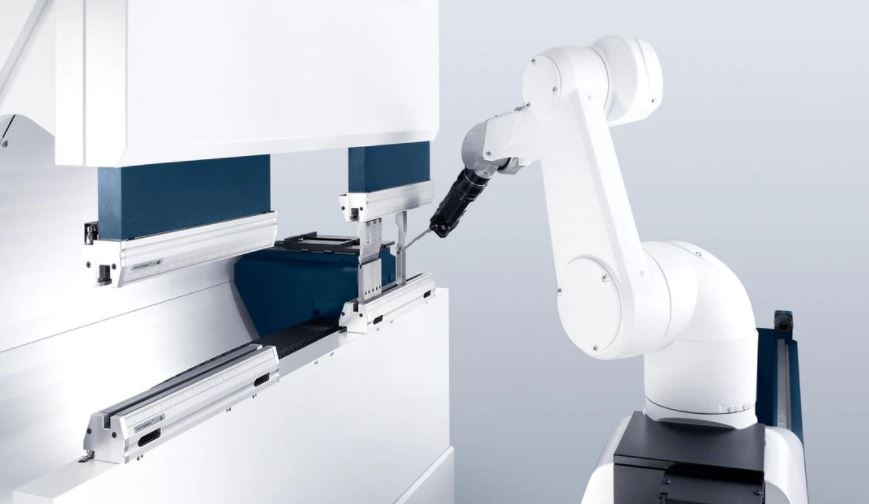

- Split tool clamp: lets the gripper hold the part through the whole sequence, without time-consuming regripping.
- Automatic gripper change: a changing console swaps BendMaster grippers on its own, with a cleaning station for the tools.
- ACB and ACB Wireless: correct bend angles automatically, including on short sides, reflective surfaces and internal flanges.
- Conveyor system: places finished parts in boxes or moves them onto the pallet conveyor.
Specifications at a Glance

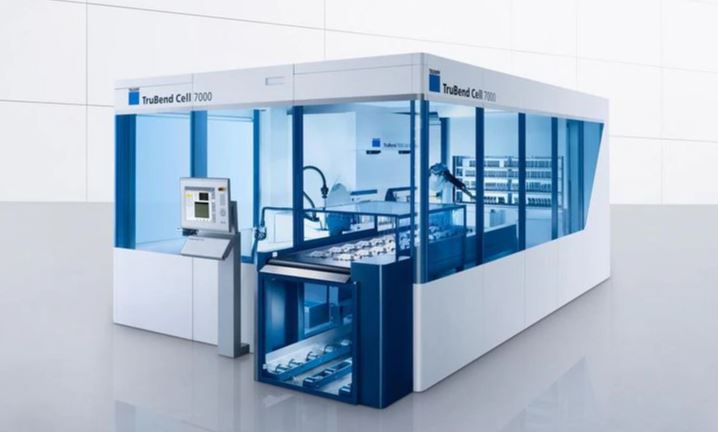

- Press brake: TruBend Cell 7036, about 24 US tons (217 kN), bending length 2 × 19.7 in (2 × 500 mm)
- Part size and weight: up to 19.7 × 15 in (500 × 380 mm) and 3.3 lb (1.5 kg)
- Sheet thickness: 0.020 to 0.236 in (0.5 to 6 mm)
- Working speed: up to 2.0 in/s (50 mm/s)
- Footprint: 18.0 × 12.7 ft (5,500 × 3,870 mm); minimum ceiling height 18.0 ft (5,500 mm)
Who It’s For
Shops producing large quantities of small bent parts that want to bend them automatically, around the clock, with minimal operator time.
Sales & Service from Icon
Icon Machine Tool is the TRUMPF sales partner for Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
Full Specifications (PDF) Talk to a Specialist: (816) 300-0019
