Description
Key Features
- Dyna Guide: increases rigidity as the blade engages the material, reducing waviness on the cut face, and suppresses blade vibration and swing for precise cuts. The saw head runs on horizontal linear guides.
- CNC control and servo feed: a servo motor and ball screw feed the material, with multiple indexing from 0.394 to 393.7 in and automatic trim cuts.

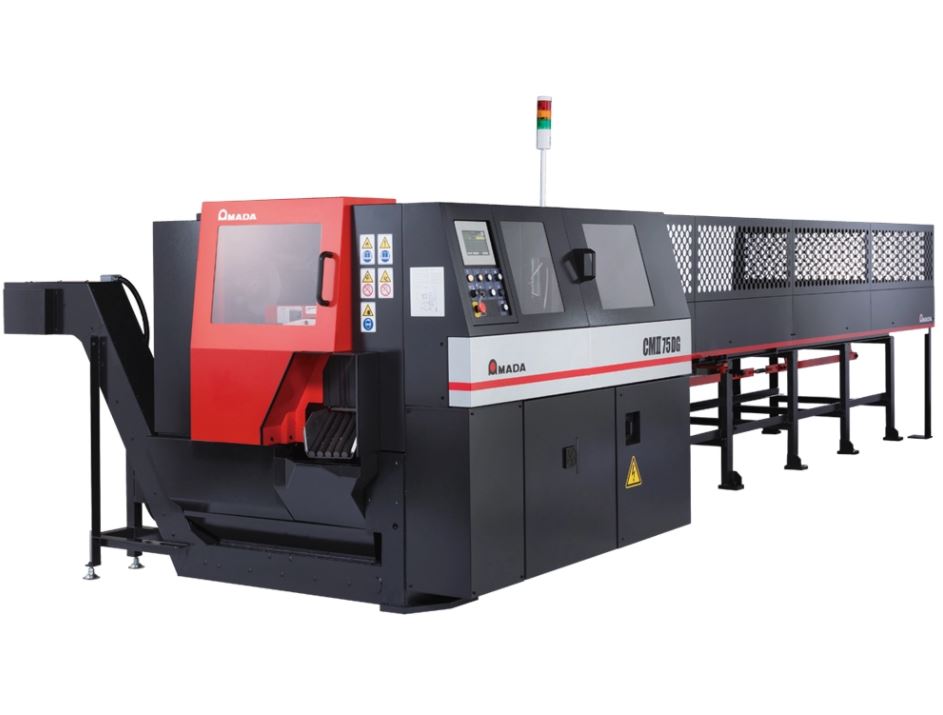

- Incline loading table: holds 10 round bars 19.6 ft long, up to 3 in diameter on the CMII75DG and 4 in on the CMII100DG.
- Unloading: a chip conveyor and a sorting device are standard.
- Blade life: carbide stabilizer pads dampen vibration, with a controlled mist system.
- Monitoring: self-diagnostics, a cut piece counter and ammeter monitoring of the main motor’s amp draw.
- Options: mist collector, vise pressure control and a signal tower.
Specifications at a Glance

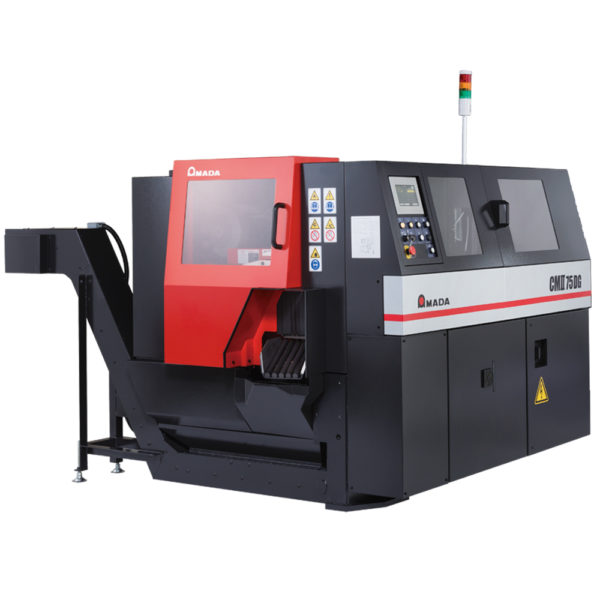

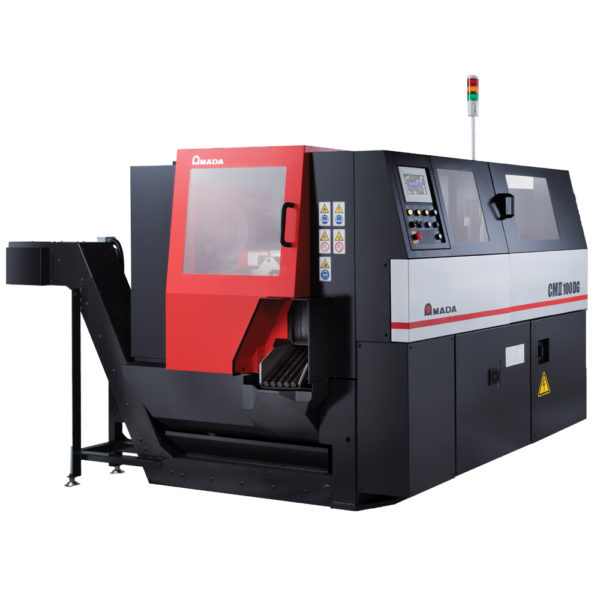

- Round capacity: 0.394 to 3 in (CMII75DG); 0.787 to 4 in (CMII100DG)
- Rectangular capacity: up to 2.55 x 2.55 in (CMII75DG); up to 3.15 x 3.15 in (CMII100DG)

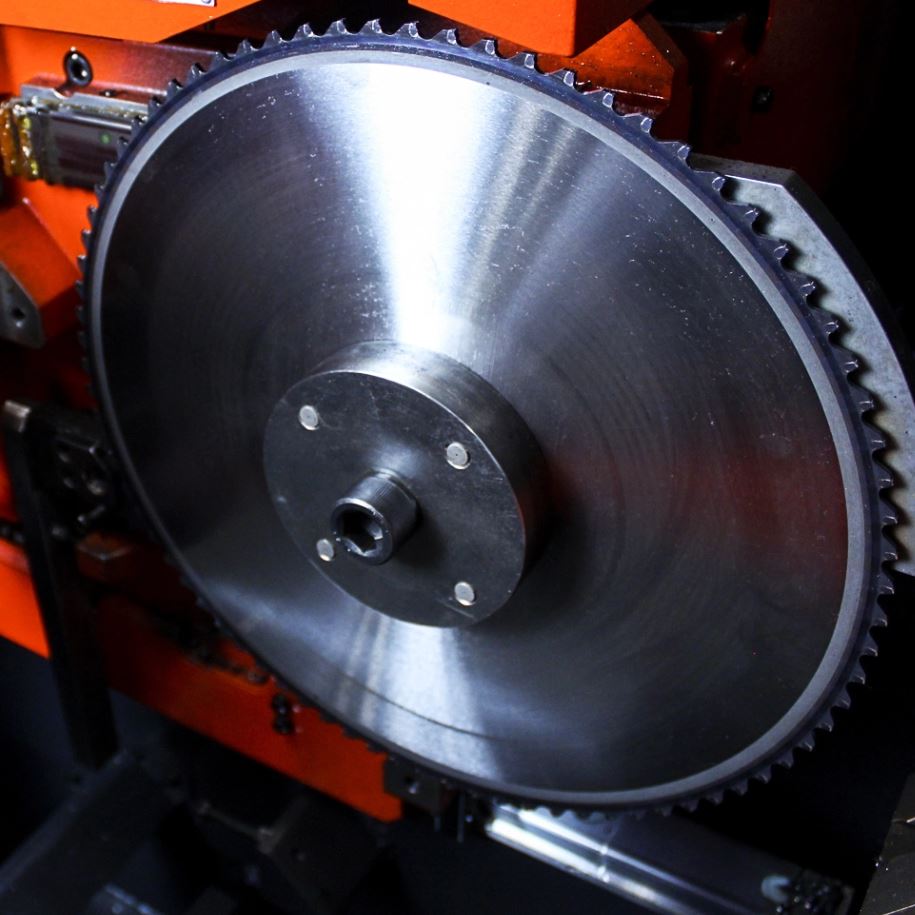

- Blade: carbide, 11.2 in diameter (CMII75DG) or 14.2 in (CMII100DG), 1.57 in bore
- Blade motor: 14.7 hp (CMII75DG); 20.1 hp (CMII100DG)
- Weight: 4,409 lb (CMII75DG); 5,513 lb (CMII100DG)
Who It’s For
Production shops and service centers cutting solid bar and small sections to length in high volume, where cut finish and blade life matter.
Sales & Service from Icon
Icon Machine Tool sells Amada machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
