378TM – Amada Marvel Mark II (2023)

YEAR 2023

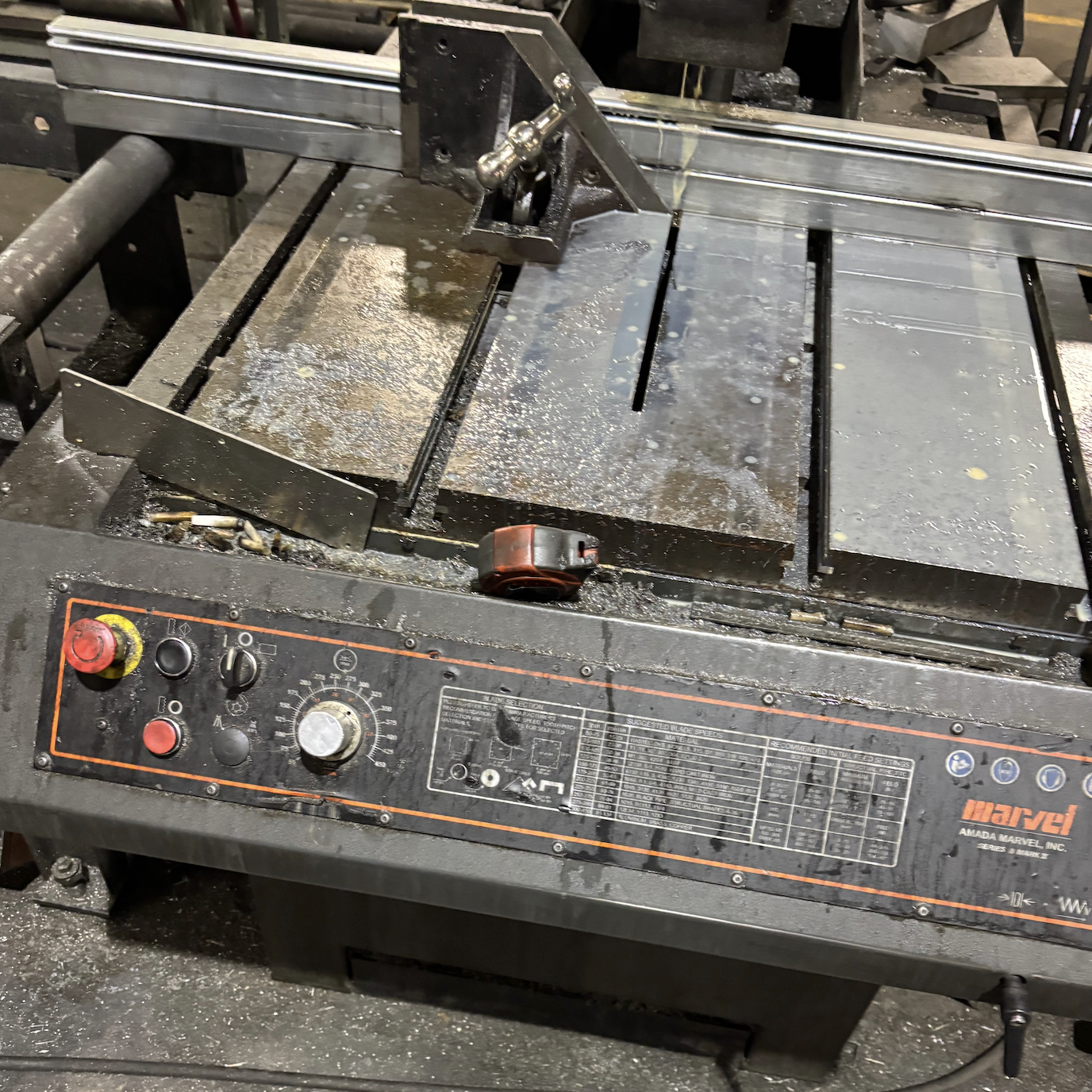

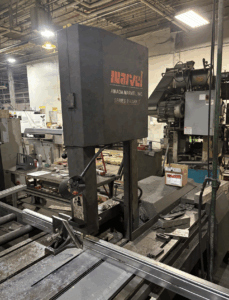

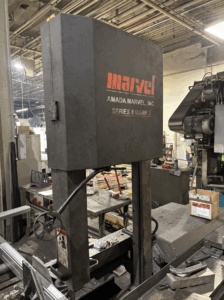

This Amada Marvel Mark II Vertical Band Saw (3 Phase/480V) delivers the reliability, accuracy, and cutting efficiency shops expect from a premium horizontal/vertical bandsaw. This unit offers exceptional versatility with its wide cutting capacities, smooth variable‑speed control, and rugged construction – ideal for fabrication, steel service centers, and production environments looking to boost throughput without sacrificing precision.

Description

Specifications:
Cutting Capacity at 90°: 18″ horizontal, 22″ vertical
Cutting Capacity at 45°: 18″ horizontal, 12.75″ vertical
Blade Speed Range: 50–450 fpm, infinitely variable speed drive system
Feed Range: 0–140 lbs., infinitely variable direct reading scale balance beam
Work Table: 24.25″ × 33″, t‑slotted for .625″ t‑bolts (4 slots)
Table Height: 34.5″
Blade Size: 14′ 6″ L × 1″ W, .035″ Thickness
Main Motor: 2 HP, 1800 RPM, TEFC
Coolant Pump: 1/8 HP, 3600 RPM totally enclosed, built in integrally
Air Requirements: 5 cfm @ 80 psi per minute
Color: Machine Tool Gray
