376TI – Cincinnati PF135 X 10 (2012)

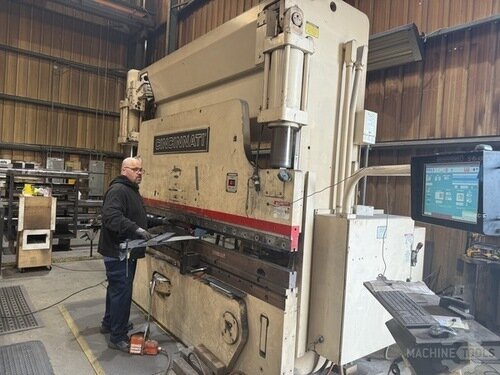

The Cincinnati PF135 X 10 (2012) Press Brake is a reliable and high-performance machine built for precision metal forming. With a 135-ton capacity and 10-foot bed, this model is perfect for medium to heavy-duty bending applications. Combining durability with ease of use, this makes it an ideal addition to any fabrication shop.

Specifications:

TONNAGE CAPACITY: 135
OVERALL LENGTH OF BED & RAM: 144”
DISTANCE BETWEEN HOUSINGS: 126.75”
STROKE: 8″ (STANDARD)
OPEN HEIGHT: 15″
CLOSED HEIGHT: 7″
THROAT CLEARANCE: 7″
SPEEDS:
- RAPID APPROACH: 200 IPM
- VARIABLE FORMING: 1 TO 55
- VARIABLE RETURN: 1 TO 185
RAM REPEATABILITY: (+-) 0.0004″
DISTANCE FROM FLOOR TO BED TOP: 34″
WIDTH AT TOP OF BED: 3.5″
PIT REQUIRED: NO
STANDARD MOTOR HORSEPOWER: 15
