380SS – HYDMECH M-20A Band Saw (2010)

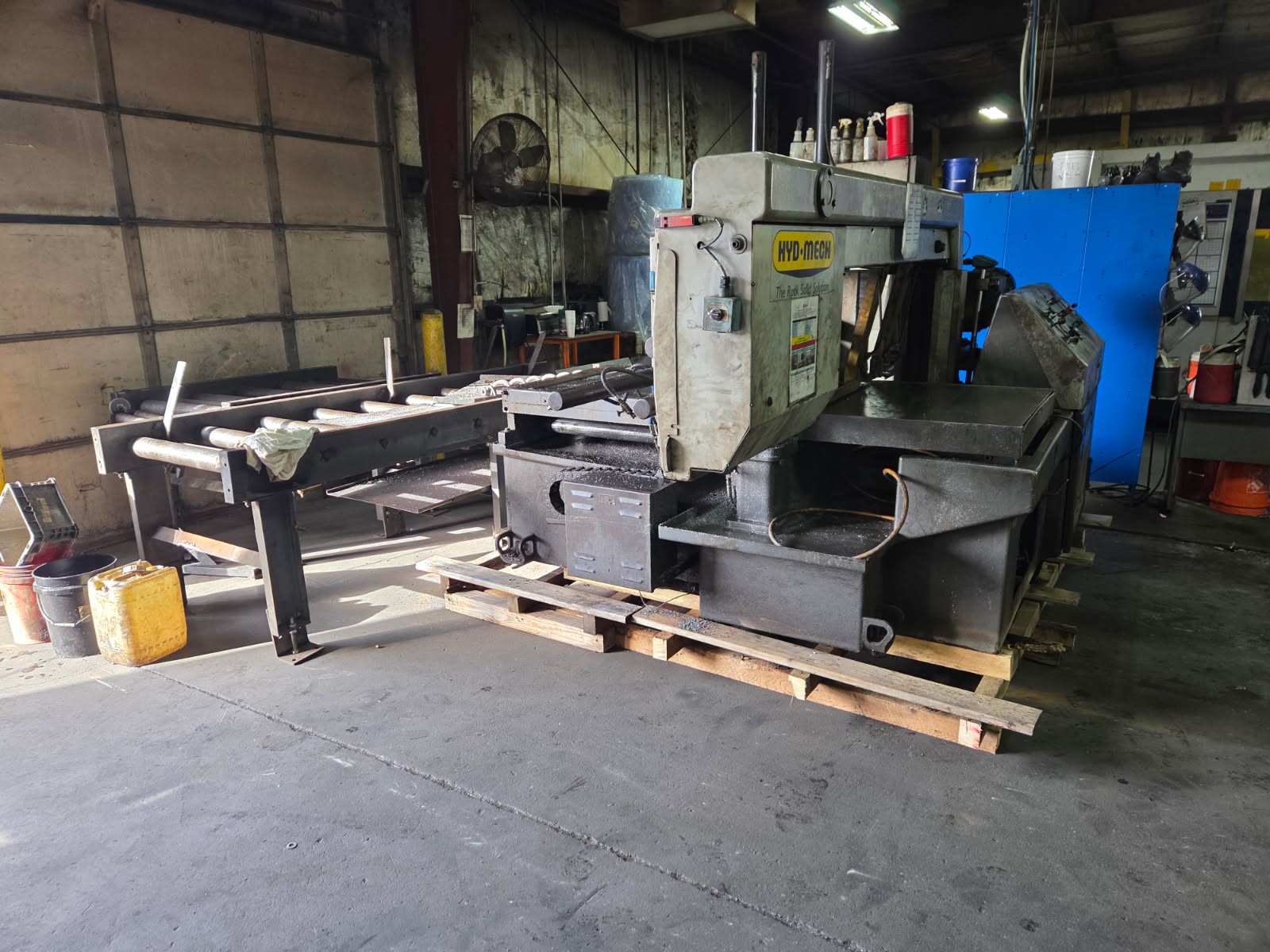

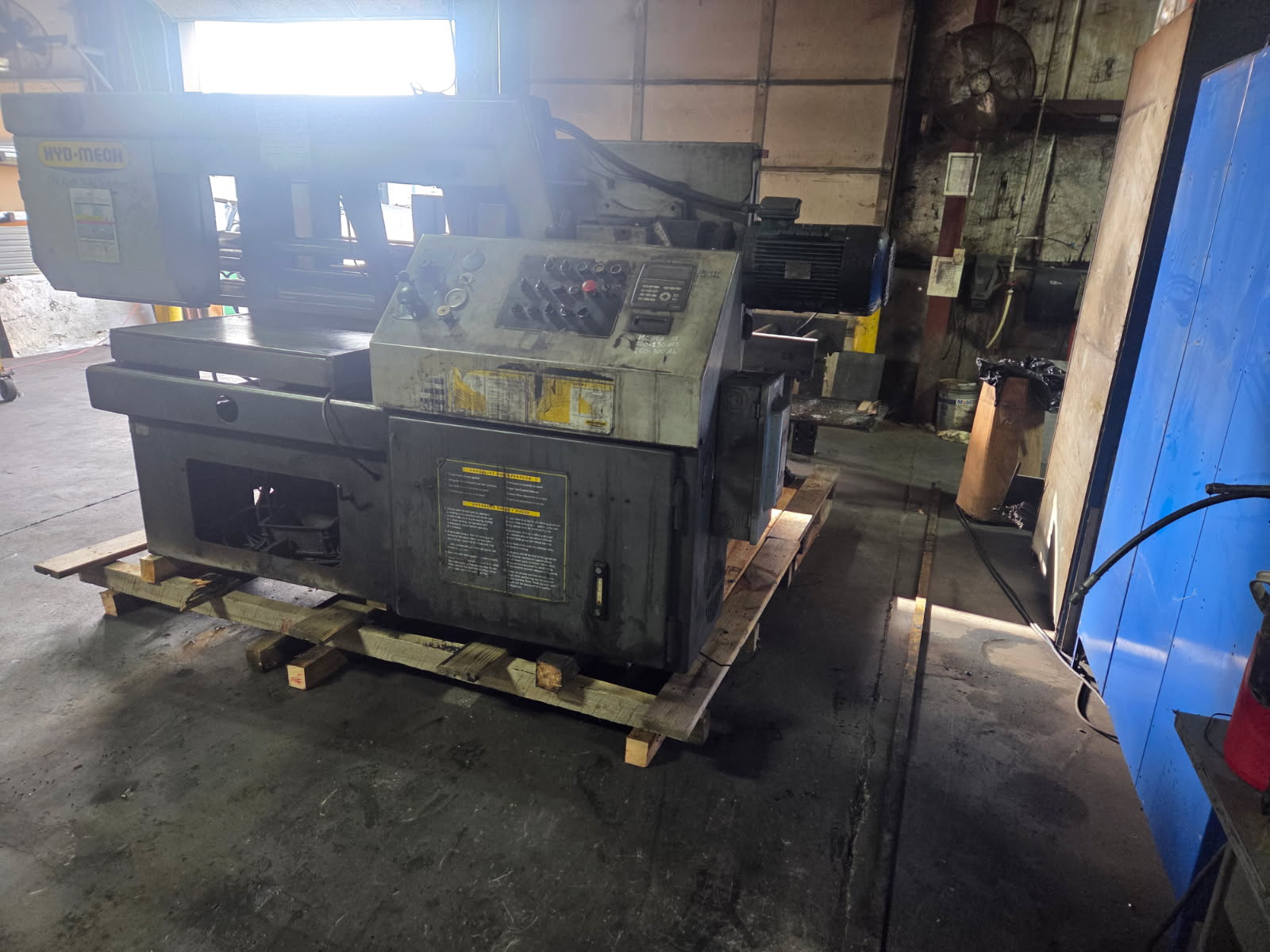

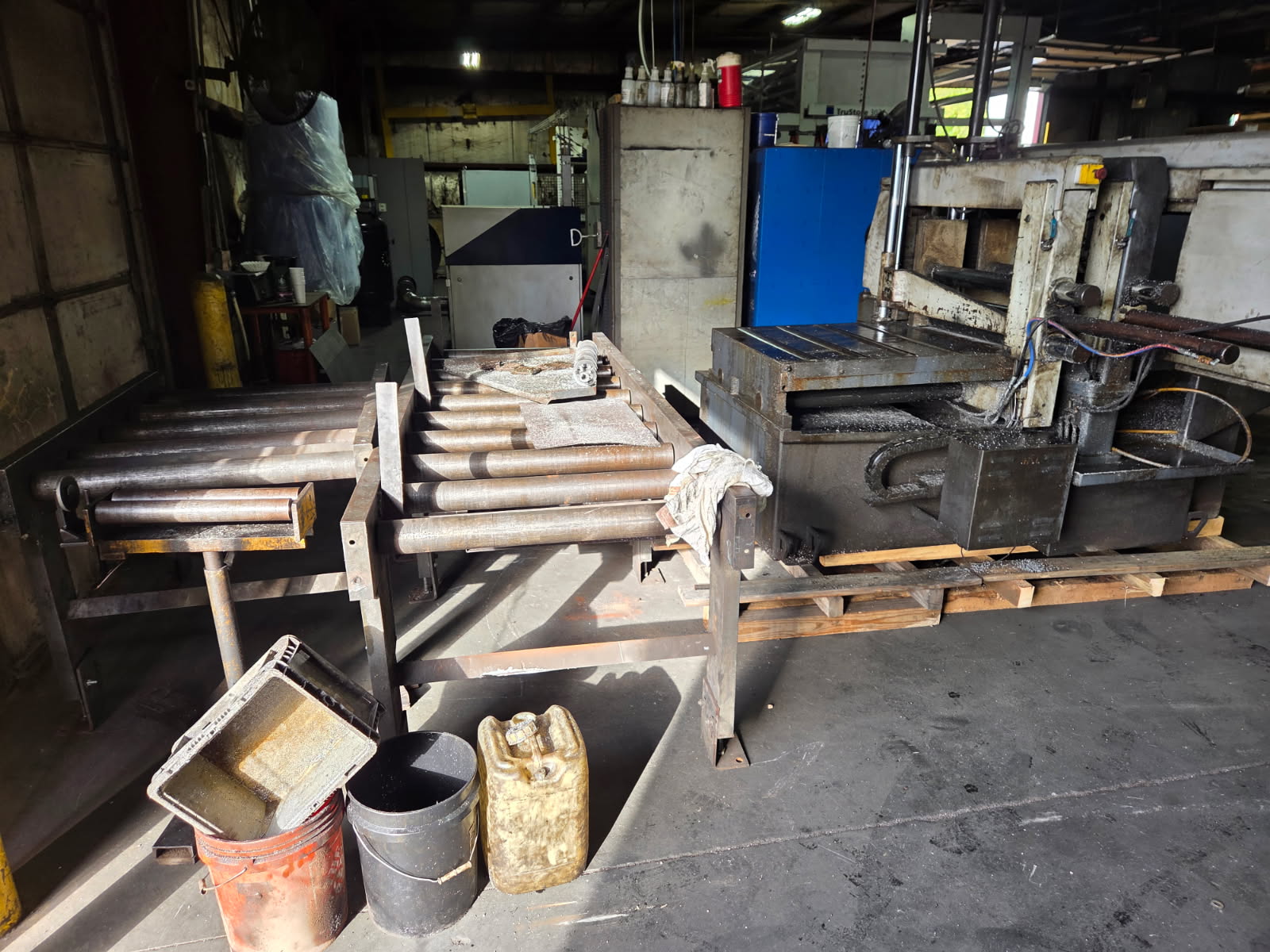

Used – HYDMECH M-20A Band Saw (2010)

The HYDMECH M-20A is a heavy-duty, fully automatic horizontal mitering band saw designed for high-production metal cutting applications. Featuring automatic mitering, hydraulic material clamping, and automatic multi-indexing, the M-20A delivers efficient, accurate, and repeatable cutting of structural steel, tubing, and solid materials.

Equipped with a 10 HP variable-speed blade drive and a cutting capacity of up to 20″ x 30″, this machine also includes full-capacity overhead bundling vises, variable vise pressure, and additional material handling conveyors for increased versatility and productivity

SKU: SN# T1210729 Category:

Description

Features

  • Automatic programmable mitering with go-to angle positioning
  • Automatic multi-indexing material feed system
  • 10 HP variable-speed direct blade drive
  • Full-capacity, full-stroke hydraulic material vises
  • Hydraulic positive down-feed
  • Heavy-duty cast iron band wheels
  • Adjustable blade guide arms mounted on linear rails
  • Hydraulic blade and carbide guide tensioning
  • Automatic chip removal auger
  • Flood coolant system with wash-down hose
  • Blade breakage detection
  • Replaceable blade brush
  • Safety door interlocks

All features and specifications are approximate and subject to verification. Comes shown as is.
