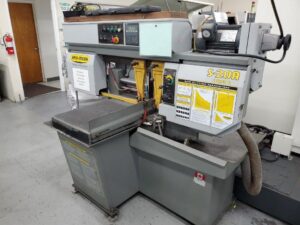

HYD-MECH S20A II

Capacity:

– Rectangular 13” High x 18” Wide
– Round 12” diameter @ 45º

Length Control: programmable up to 99 jobs, with 5 queue.

Blade:

-length 13’ 6”

-width 1”

-thickness .032”

Blade speed Variable: 75 to 350 Surface Feet/Minute

Blade guides: Carbide

Blade wheel diameter: 16”

Motors:

– Blade Drive 3 HP

– Hydraulic Pump Drive 2 HP

– Coolant Pump 3.5 Gallons per Minute

SPECIFICATIONS CONT’D:

Coolant reservoir: 6 Gallons

Table Height: 30” High

Shuttle Stroke: 29”

Machine Weight: 3000 Pounds

Maximum Work Load: 5000 Pounds

Overall Dimensions: 84” Wide x 120” Long x 56” High
